Wichard

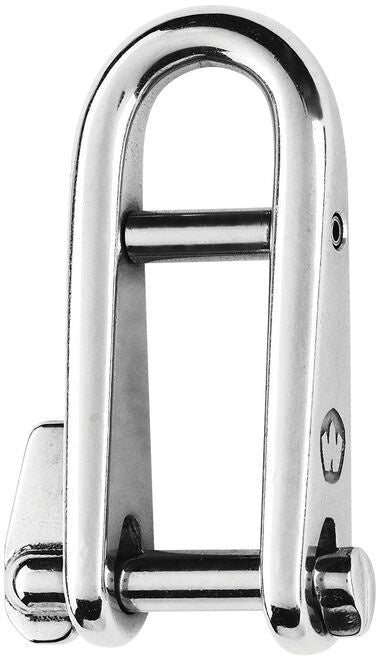

Key pin shackle with bar - Dia 5 mm
Key pin shackle with bar - Dia 5 mm
Regular price
$36.80 AUD
Regular price
Sale price
$36.80 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Key pin shackle forged in grade 316L stainless steel
Opening and closing is done simply by rotating the pin half a turn
No risk to lose the pin as it remains attached
Outstanding working and breaking loads
Applications
Perfect product for halyards or applications requiring to open /close the shackle often
Specifications
| Part No: | 81432 | 81433 | 81434 |
| Working load (kg) | 400 | 520 | 800 |
| Breaking load (kg) | 1200 | 1700 | 2500 |
| Weight (g) | 31 | 52 | 123 |
| A (mm) | 37 | 45 | 59 |
| B (mm) | 13 | 16 | 21 |
| C (mm) | 5 | 6 | 8 |
| d (mm) | 11 | 13 | 17 |
| D diameter (mm) | 5 | 6 | 8 |
| E (mm) | 4 | 4 | 6 |
| F (mm) | 49 | 60 | 79 |
| G (mm) | 31 | 37 | 49 |
| L (mm) | 12 | 15 | 20 |
Materials
316 stainless steel grade
