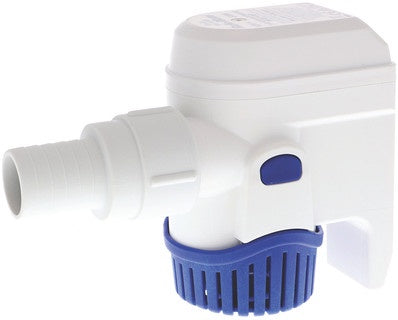

Pump Rule-Mate Fully Automated bilge Pumps

Description

The NEW Rule-Mate bilge pumps operate using an internal water level sensor.

• When the bilge water level reaches 62mm height, the pump will automatically activate, removing water from the bilge.
• When the water level goes down to 16mm height, the pump will automatically shut off until the water level rises again.

Key design features:

• Hidden air vents in the body of the pump help prevent air locking in challenging plumbing installations.
• A check valve is included in the discharge nozzle to prevent water running back into the bilge.
• The smaller footprint of the NEW Rule-Mate pumps (only 2/3 the size of the previous versions) allows mounting in tighter spaces.

Dimensions:

• All pumps are the same physical size: 73mm depth x 112mm height.
• Length: 129mm to the end of the threaded discharge nozzle and totals 165mm including the screw-on hose port.
• Snap-in strainer mounting base footprint: 64mm x 57mm with a slightly oval shape.

Features

• Featuring state-of-the-art water sensing technology
• Pump turns on when water level rises and shuts off when water is removed
• No float switch required
• Anti-fouling impeller
• Submersible
• Ignition protected
• Includes backflow preventer

Specifications

12 Volt 1100 GPH - 69 LPM (RULE model RM1100B)

• Flow rates:
  • 1100 US Gallons per hour - 69 Litres per minute at open flow
  • 790 US Gallons per hour - 49 Litres per minute at 1 metre head
• Electrical specs:
  • 3.8 amp @ 12V, 4.8 amp @ 13.6V
  • Fuse size: 7.5 amp
• Hose outlets:
  • Supplied with 2 x straight hose outlets: 25mm (1") & 28mm (1 1/8")

12 Volt 800 GPH - 50 LPM (RULE model RM800B)

• Flow rates:
  • 800 US Gallons per hour - 50 Litres per minute at open flow
  • 640 US Gallons per hour - 40 Litres per minute at 1 metre head
• Electrical specs:
  • 3.0 amp @ 12V, 3.7 amp @ 13.6V
  • Fuse size: 5 amp
• Hose outlet:
  • Supplied with 1 x 20mm (3/4") threaded straight hose outlet

12 Volt 500 GPH - 31 LPM (RULE model RM500B)

• Flow rates:
  • 500 US Gallons per hour - 31 Litres per minute at open flow
  • 289 US Gallons per hour - 18 Litres per minute at 1 metre head
• Electrical specs:
  • 1.8 amp @ 12V, 2.4 amp @ 13.6V
  • Fuse size: 4 amp
• Hose outlet:
  • Supplied with 1 x 20mm (3/4") threaded straight hose outlet
