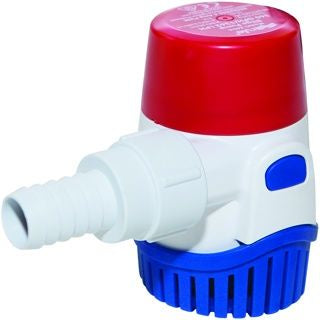

Rule Fully Submersible Pump - Non Automatic
Rule Fully Submersible Pump - Non Automatic
Regular price
$120.48 AUD
Regular price
Sale price
$120.48 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Next generation compact submersible electric pumps for use as bilge or bait pumps, or other similar purposes.
They are totally submersible, water cooled, with stainless steel shaft, plus ignition and TCO protected motor, The convenient snap-on strainer base greatly simplifies removal for servicing and cleaning the pickup strainer.
These pumps are extremely efficient, draw low current and offer high capacity output in a very compact housing, designed to fit into the smallest available space.
Please note:
- These are NON-Automatic pumps which require a float switch to operate automatically
- Using the included check valve will reduce the output flow of the pump
- Available in 12 volts only
Features
- Higher flow - optimised impeller to provide greater flow at the same amperage as previous model
- High efficiency, low amp draw ignition protected motor includes true Electromagnetic suppression (EMC)
- 16 gauge tin coated copper electrical wiring with silicone infused water blocking feature to stop water wicking down inside the wiring
- Built-In thermal cut-out (TCO) in the motor provides additional protection for pump & vessel
- Backflow prevention - now includes a removable check valve in the discharge nozzle which reduces the amount of water draining back from the pump discharge hose into the bilge.
- Threaded discharge port - gives easier installation and maintenance.
- Discharge hose port is included with each pump
- Hidden air vents in the pump prevent air locking in challenging plumbing installations and helps with the check valve operation
- Compact - 99mm Height x 74mm Width x 64mm depth - not including discharge
- 2.1 amp draw @ 12v DC
- Threaded hose outlet suits 20mm (3/4") hose. 1 x straight port provided.
Specifications
| Model: | 24DA | 25DA | 20DA |
| Capacity: | 360GPH / 1363 LPH | 500GPH / 1893LPH | 800GPH / 3028LPH |
| Voltage: | 12 | 12 | 12 |
| Amps: | 2.1 | 1.6 | 3.4 |
| Fuse (not incl.) | 4 Amp | 4 Amp | 7.5 amp |
