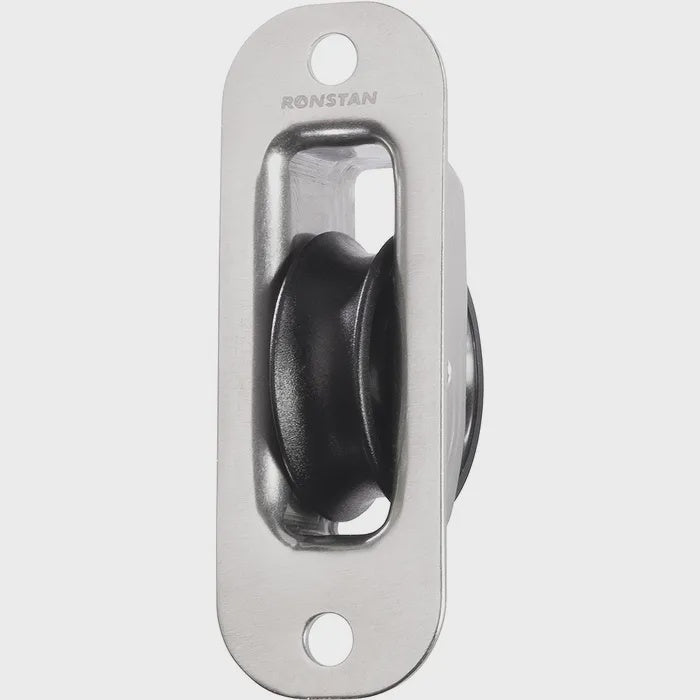

Series 30 Ball Bearing Exit Block
$47.36AUD
or 4 interest-free payments of $11.84 with
Pay in four interest-free instalments of 11.84 AUD with Afterpay.
This combination isn't made — try one below
That combination isn't available on this product.
Closest options we do stock:
Free shipping over $149*
Australia-wide dispatch
Click & Collect
Ready at Woy Woy
Easy returns
30 days, in-store or post
Local expert advice
We fish these waters
Need advice on this gear? Call (02) 4309 6609
Exit and sheave boxes are ideal for applications where lines need to be led through decks, bulkheads or spars minimising friction and chafing.
Features
The series 40 variant (RF45711) exit block incorporates our 2-stage bearing system using ball bearings to minimise friction and a secondary full-contact bearing to maintain low friction across the full working load range.
Specifications
| Block series | 15 | 20 | 30 | 40 |
| B.L. (kg) | 550 | 1100 | 1100 | 2000 |
| M.W.L. (kg) | 120 | 300 | 300 | 800 |
| Max. Rope diameter (mm) | 5 | 6 | 8 | 10 |
| Weight (g) | 14 | 18 | 34 | 77 |
| Sheave Material | 4 | 0.11 | Acetal | 6 |
| Wire Ø (mm) | 2 | 2 | 5 | 2 |
Materials
- Sheave: UV stabilised acetal
- Housing: Grade 316 stainless stee
