Ronstan

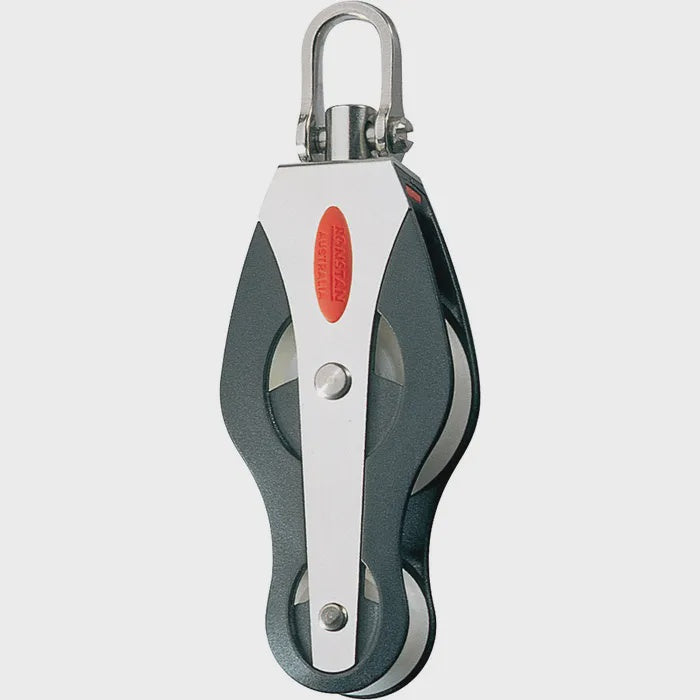

Series 50 All Purpose Block, Fiddle
Series 50 All Purpose Block, Fiddle
Regular price
$71.73 AUD
Regular price
Sale price
$71.73 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features
- Exceptionally high working loads.
- Low maintenance, long service life.
- Self-lubricating sheave
- Captive Lock™ universal head.
- Slotted pin shackle eliminates fouled lines.
Specifications
| Type of Block | Fiddle |
|---|---|
| B.L. (kg) | 1500 |
| M.W.L. (kg) | 750 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 167 |
| Pin Ø (mm) | 5 |
Applications
- Mainsheet
- Halyard
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
- Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems.
Materials
- U.V. stabilised Acetal sheaves
- Impact and U.V. resistant, fibre reinforced Nylon cheeks
- Grade 316 stainless steel bearing race
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheek
Variants
| Product No | Max Rope Dia mm (in) | Sheave Dia mm (in) | Max Working Load g (lb) | Beak Load kg (lb) | Weight g (oz) | Pin Dia mm (in) |
| RF51100 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 118 (4.2) | 5 (3/16) |
| RF51101 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 98 (3.5) | - |
| RF51110 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 134 (4.7) | 5 (3/16) |
| RF51111 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 114 (4) | - |
| RF51140 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 118 (4.2) | - |
| RF51151 | 12 (1/2) | 50 (2) | 500 (1100) | 1000 (2200) | 85 (3) | - |
| RF51171 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 115 (4.1) | - |
| RF51200 | 12 (1/2) | 50 (2) | 1000 (2200) | 2000 (4410) | 255 (9) | 6 (1/4) |
| RF51210 | 12 (1/2) | 50 (2) | 1000 (2200) | 2000 (4410) | 271 (9.6) | 6 (1/4) |
| RF51300 | 12 (1/2) | 50 (2) | 1200 (2650) | 2400 (5290) | 369 (13) | 6 (1/4) |
| RF51500 | 10 (3/8) | 54 + 34 (2 1/8 + 1 5/16) | 750 (1650) | 1500 (3310) | 167 (5.9) | 5 (3/16) |
| RF51510 | 10 (3/8) | 54 + 34 (2 1/8 + 1 5/16) | 750 (1650) | 1500 (3310) | 176 (6.2) | 5 (3/16) |
| RF51530 | 10 (3/8) | 54 + 34 (2 1/8 + 1 5/16) | 750 (1650) | 1500 (3310) | 318 (11.2) | 5 (3/16) |
| RF66100 | 14 (9/16) | 60 (2 3/8) | 1100 (2430) | 2200 (4850) | 248 (8.7) | 6 (1/4) |
