Ronstan

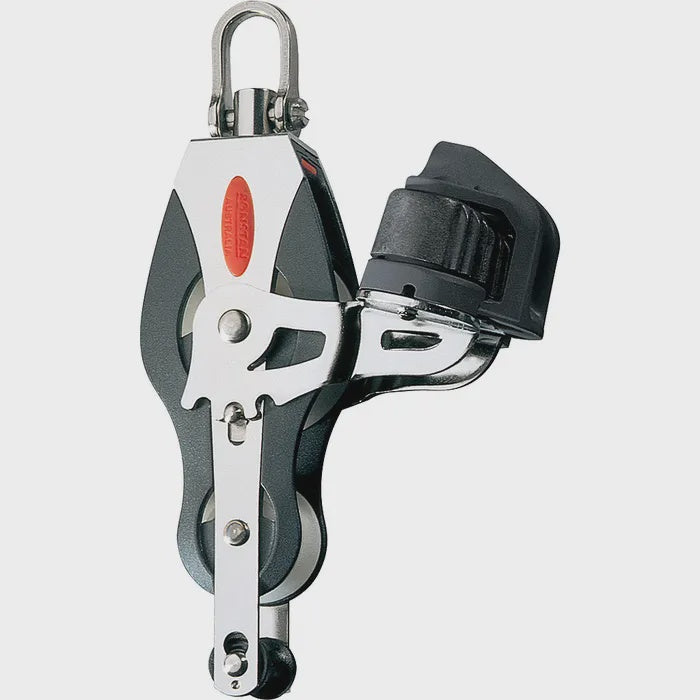

Series 50 All Purpose Block, Fiddle with Becket and Cam Cleat
Series 50 All Purpose Block, Fiddle with Becket and Cam Cleat
Regular price
$163.57 AUD
Regular price
Sale price
$163.57 AUD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools
Features
- Exceptionally high working loads.
- Low maintenance, long service life.
- Self-lubricating sheave
- Captive Lock™ universal head.
- Slotted pin shackle eliminates fouled lines.
- Snap fit removable becket pin.
- Multi-position cleat arm
- Spare parts - RF51010 Replacement Becket Pin, RF150 Shackle
Specifications
| Type of Block | Fiddle |
|---|---|
| B.L. (kg) | 1500 |
| M.W.L. (kg) | 700* |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 318 |
| Pin Ø (mm) | 5 |
| *Notes: | MWL based on maximum allowable line load through cleat of 175kg (385lb), 4:1 purchase |
Applications
- Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
- Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems
Materials
- U.V. stabilised Acetal sheaves
- Impact and U.V. resistant, fibre reinforced Nylon cheeks
- Grade 316 stainless steel bearing race
- Grade 316 stainless steel load strap and head fitting
Variants
| Product No | Max Rope Dia mm (in) | Sheave Dia mm (in) | Max Working Load g (lb) | Beak Load kg (lb) | Weight g (oz) | Pin Dia mm (in) | Fasteners mm (in) |
|---|---|---|---|---|---|---|---|
| RF51100 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 118 (4.2) | 5 (3/16) | - |
| RF51101 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 98 (3.5) | - | - |
| RF51110 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 134 (4.7) | 5 (3/16) | - |
| RF51111 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 114 (4) | - | - |
| RF51140 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 118 (4.2) | - | - |
| RF51151 | 12 (1/2) | 50 (2) | 500 (1100) | 1000 (2200) | 85 (3) | - | - |
| RF51171 | 12 (1/2) | 50 (2) | 750 (1650) | 1500 (3310) | 115 (4.1) | - | 6 (1/4) |
| RF51200 | 12 (1/2) | 50 (2) | 1000 (2200) | 2000 (4410) | 255 (9) | 6 (1/4) | - |
| RF51210 | 12 (1/2) | 50 (2) | 1000 (2200) | 2000 (4410) | 271 (9.6) | 6 (1/4) | - |
| RF51300 | 12 (1/2) | 50 (2) | 1200 (2650) | 2400 (5290) | 369 (13) | 6 (1/4) | - |
| RF51500 | 10 (3/8) | 54 + 34 (2 1/8 + 1 5/16) | 750 (1650) | 1500 (3310) | 167 (5.9) | 5 (3/16) | - |
| RF51510 | 10 (3/8) | 54 + 34 (2 1/8 + 1 5/16) | 750 (1650) | 1500 (3310) | 176 (6.2) | 5 (3/16) | - |
| RF51530 | 10 (3/8) | 54 + 34 (2 1/8 + 1 5/16) | 750 (1650) | 1500 (3310) | 318 (11.2) | 5 (3/16) | - |
| RF66100 | 14 (9/16) | 60 (2 3/8) | 1100 (2430) | 2200 (4850) | 248 (8.7) | 6 (1/4) |
